Explore Hydrema's 912G series: A range of dynamic and robust dump trucks built to master even the most demanding terrain. The series, which includes the 912G, 912GS and 912HM models, are carefully engineered to deliver superb manoeuvrability thanks to their articulated design. These machines combine a lightweight structure with powerful performance to ensure durability and significant uptime. They are perfectly adapted for any type of construction site and for challenging working environments where the terrain requires a particularly robust and reliable dumper.
Meet the Hydrema 912HM - a dump truck built to master challenging landscapes with unrivalled capacity. This model in Hydrema's fleet of 10-tonne dumper trucks is distinguished by its improved off-road capability, larger tyres and increased ground clearance for lower ground pressure. With Danish design expertise combined with state-of-the-art technology, the 912HM delivers performance to meet the most demanding work scenarios. Choose the robust choice; choose the Hydrema 912HM to feel the difference and expand your horizons.
With its robust heart - a 4.5 litre 16-valve 16-valve Common-Rail Turbo Diesel engine - the Hydrema 912HM stands out as a giant in construction machinery, delivering a formidable 147 hp (108 kW). This machine combines raw power with environmental concerns through its state-of-the-art emission reduction technology, including DOC, DPF and SCR catalysts enhanced with AdBlue technology, making the 912HM a model for future environmental standards and suitable for biodiesel use.
Experience the dynamic and fluid operation of the Hydrema 912HM's driving force via the sophisticated ZF WG 115 6-speed "ERGO POWER" Soft-Shift gearbox, which with its fully electronic control ensures smooth shifts without loss of traction. It offers a variety of gear selections and seamless transition between automatic and manual operation via joystick, giving the operator maximum control and sustained 4-wheel drive over all terrains and for every unique job.
Explore the sublime balance and unbreakable stability provided by the Hydrema 912HM's central articulated joint, the pendulum rod and the dual-acting hydraulic stabilisers. These features work together to ensure a robust ride and reliable tipping in all conditions. The intelligent design incorporates the fuel and hydraulic tanks into the front of the frame, optimising space and efficiency. Customisation options include a lock function for the pendulum movement and a significant pendulum angle of +/- 12°, making the 912HM adaptable and off-road capable.
The Hydrema 912HM highlights its suspended front axle, which provides a comfortable driving experience by minimising vibrations and shocks from uneven terrain. This, in contrast to the stiffer 912G model, ensures better driver comfort and improves traction and stability. With both an automatic differential lock on the front axle and an electro-hydraulic lock at the rear, the 912HM seamlessly balances comfort and capability on all surfaces.
At the heart of the Hydrema 912HM is a ZF WG 115 6-speed fully automatic "ERGO POWER" Soft-Shift transmission with 100% electronically controlled clutches for smooth gear changes without losing traction. With 6 forward and 3 reverse gears, it ensures constant 4WD, while the driver can easily choose between automatic or manual shifting with the joystick.
The 912HM dumper is equipped with the powerful Cummins B-4.5L Stage 5 engine and equipped with DOC, DPF, and SCR catalyst with AdBlue. This 4.5 litre, 16-valve Common-Rail Turbodiesel engine has an electronically controlled variable turbocharger, delivering a maximum of 147 hp (108 kW) at 2000 rpm and a maximum torque of 600 Nm at 1500 rpm. Biodiesel compatibility ensures environmentally friendly operation.

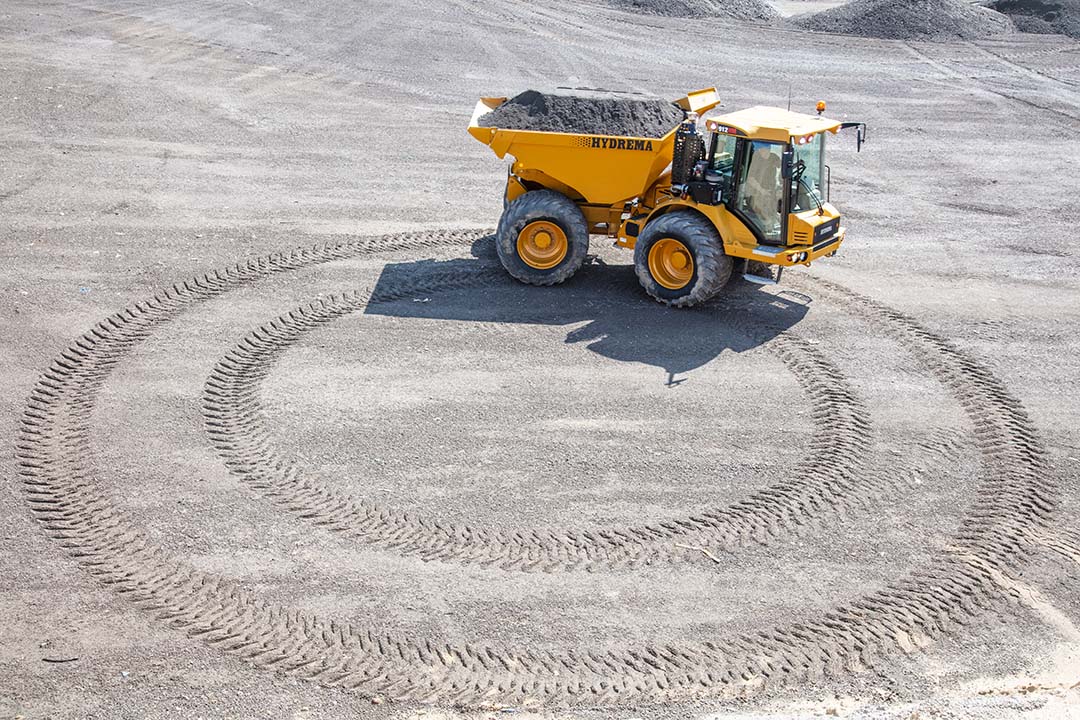

With hydrostatic Load Sensing articulated steering, supported by two powerful dual-acting cylinders that provide a maximum steering angle of +/- 35 degrees, you can manoeuvre your machine with incredible precision, even in tight terrain. The integrated emergency steering function ensures you're always in control, the system is enhanced with a priority valve for optimal reaction time, and the damped steering cylinders ensure smooth and precise control over every movement.
Equipped with an 84 l/min hydraulic pump for optimal tipping function and a dedicated pump for brakes and stabilisers, we guarantee an efficient and smooth operation every time.
Wrap yourself in the comfort of a remarkably quiet operator cab with a sound level of only 72 dB(A) - about as low as a normal conversation. Outside the cab, the machine is a powerhouse of efficiency, performing its work with a sound level of 102 dB(A), ensuring you maintain compliance with workplace noise regulations.
Our standard 24V electrical system is built for reliability, equipped with a 70 Amp alternator and two 95Ah batteries for uninterrupted power and performance.
Experience effortless safety with our automatic battery isolator, which switches off the power when you step out of the dump truck and reactivates upon your return. Customise the shutdown from the display and stay safe with an emergency stop within reach. Efficiency and safety at the touch of a button.
With a generous 140-litre diesel tank and a 14-litre AdBlue tank elegantly integrated into the front of the chassis, you're guaranteed long range and minimal downtime.
Explore a new dimension of efficiency with our robust 5.6 m³ body, constructed from robotically welded high-strength steel for ultimate durability. With an impressive 10-tonne capacity and a 75-degree tip angle that allows you to unload in just 6 seconds, this powerful truck bed is ready for the toughest jobs.

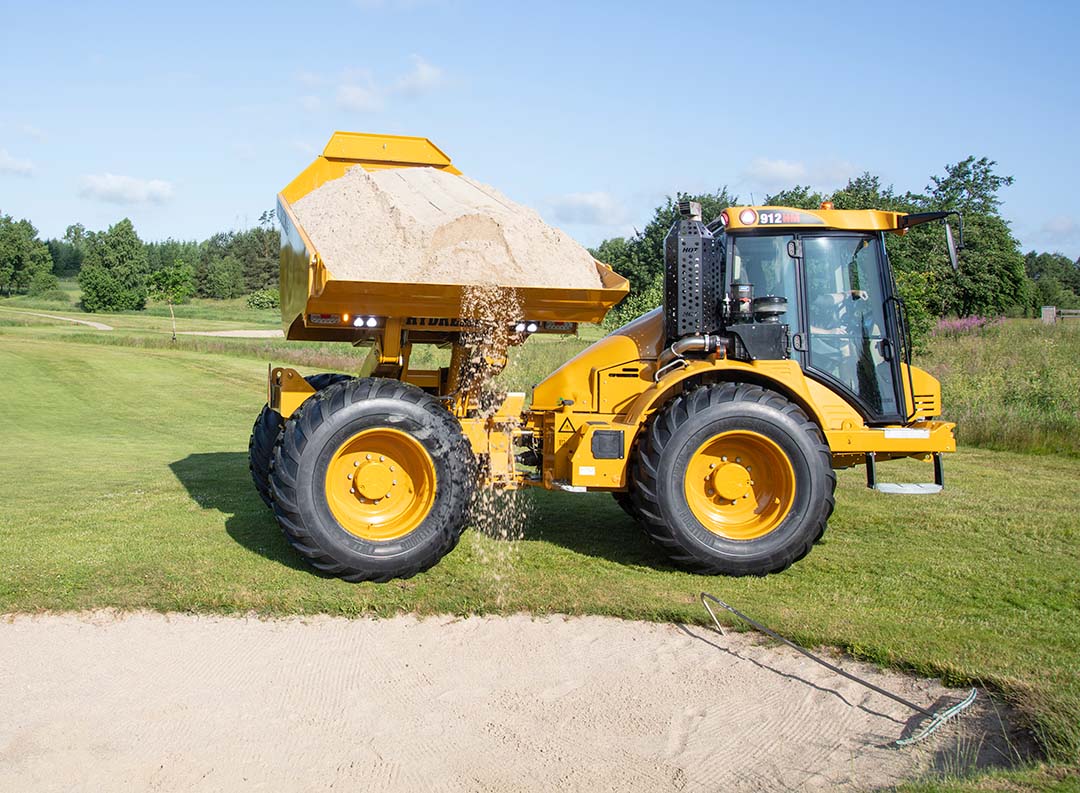

Optimise your flexibility and efficiency with MultiTip - the revolutionary choice for those looking for maximum manoeuvrability. Our compact swivelling system allows you to unload quickly and accurately, not only to the rear but also to both sides, providing effortless adaptation to any workplace. Solidly supported by a robust slewing ball bearing, the truck bed moves smoothly with the help of two potent dual-acting cylinders. Whatever the terrain, our advanced tipping function, with two additional double-acting cylinders, guarantees that you can always unload your load safely and smoothly. Choose MultiTip to transform your workday with ultimate control and precision.
Discover MultiChassis - your versatile base platform designed for unlimited possibilities. Whether you need a water tank, a concrete mixer or a salt spreader, MultiChassis gives you the freedom to adapt your vehicle for a wide range of specialised tasks. This universal platform is created to support a world of specialised solutions, allowing you to easily switch between tasks and maximise your machine's usability. Choose MultiChassis for a future where efficiency and adaptability go hand in hand.
Experience the extraordinary versatility of our Flatbed option, where we've extended the rear chassis to give you an extended loading surface. This extension ensures you can transport even longer items with maximum stability and safety. Choose Flatbed, only available on the Hydrema 912HM, for the extra dimension in capacity that makes your transport solution more flexible and adapts exactly to your needs.
Experience our reliable dual-circuit hydraulic servo system with oil immersed brake discs at all 4 wheels for constant and reliable braking power. The brakes on the 912HM dump truck are maintenance-free and self-adjusting. The handbrake is also maintenance-free with the "Fail-safe" solution, which is electro-hydraulically activated by the wet disc brakes in the front axle, providing extra safety and peace of mind.
Step inside our spacious ROPS/FOPS certified cab and enjoy clear visibility and comfort from either a mechanical or air suspension seat. With a fully adjustable steering wheel and multi-joystick controls, ergonomics and efficiency are paramount.
| STD. TIP | STD. TIP | MULTITIP | MULTICHASSIS | FLATBED | ||
| Tyres | 800/45x30.5 | 600/60x30.5 | 800/45x30.5 | 800/45x30.5 | 800/45x30.5 | |
| Total weight | kg | 18260 | 17970 | 18720 | 18000 | 18260 |
| Unladen weight | kg | 8260 | 7970 | 8720 | 6900 | 8260 |
| Load capacity | kg | 10000 | 10000 | 10000 | 11100 | 10000 |
| Body capacity | m3 | 5,6 | 5,6 | 5,6 | - | - |
| Turning radius | m | 6.3 | 6.1 | 6.3 | 6,3 | 7 |
| Ground pressure (loaded) | kPa | 85 | 113 | 86 | - | 85 |
| Suspended front axle | X | X | X | X | X | |
| Track | mm | 2060 | 1900 | 2060 | 2060 | 2060 |
| Total width | mm | 2870 | 2540 | 2870 | 2870 | 2870 |
| Clearance | mm | 520 | 520 | 520 | 520 | 520 |
| Dump truck body width | mm | 2210 | 2210 | 2210 | - | 2485 |
| Total height | mm | 2865 | 2865 | 2865 | 2868 | 2865 |
| Loading height | mm | 2330 | 2330 | 2480 | - | 1950 |
| Height with raised body | mm | 4470 | 4470 | 4635 | - | 4330 |
| Tipping clearance | mm | 1195 | 1195 | 1365 | - | 400 |
| Overhang, rear | mm | 990 | 990 | 910 | - | 1675 |
| Wheel base | mm | 3080 | 3080 | 3080 | 3080 | 3480 |
| Length | mm | 5940 | 5940 | 5860 | 5730 | 7025 |
| Approach angle, front | ° | 30 | 30 | 30 | 30 | 30 |
| Approach angle, rear | ° | 80 | 80 | 83 | - | 45 |
| Tipping angle | ° | 75 | 75 | 75 | - | 72 |
| Overhang, front | mm | 1870 | 1870 | 1870 | - | 1870 |
Customise your Hydrema dump truck - choose any colour that suits your taste or aligns with your brand. Whether you want your 912HM to reflect your corporate colours or you prefer it in your favorite hue, we can accommodate your preferences to deliver a machine that is uniquely yours.
